The machine is suitable for the production of various kinds of paste, cream products in cosmetic factory and pharmaceutical factory. Especially designed for the production of stable emulsions creams, milk, gels, balms, lotions, ointments, toothpastes, etc. having extremely small particles for chemical, cosmetics, pharmaceutical and food industries.

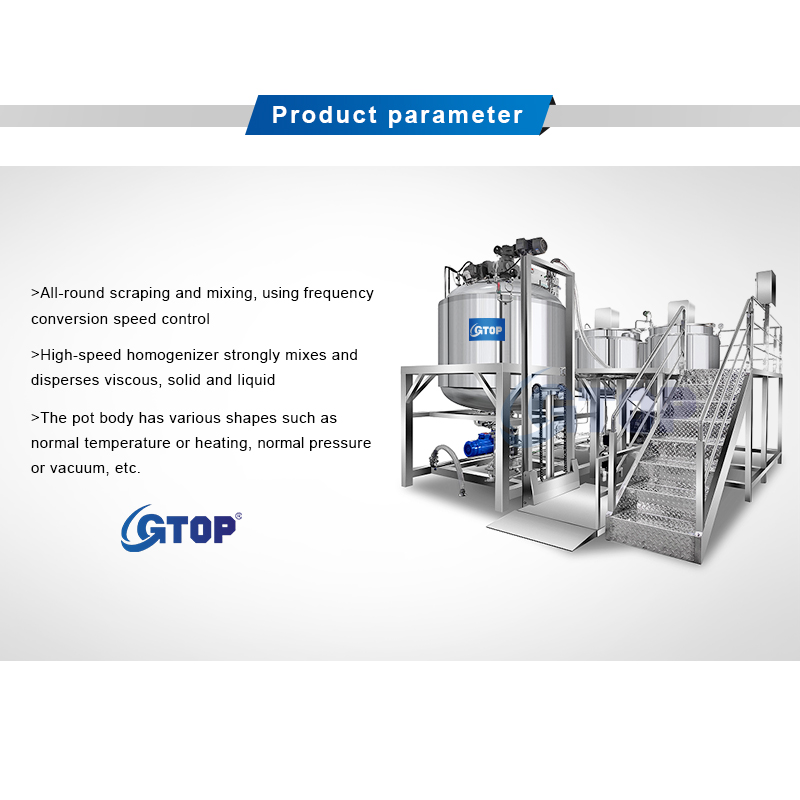

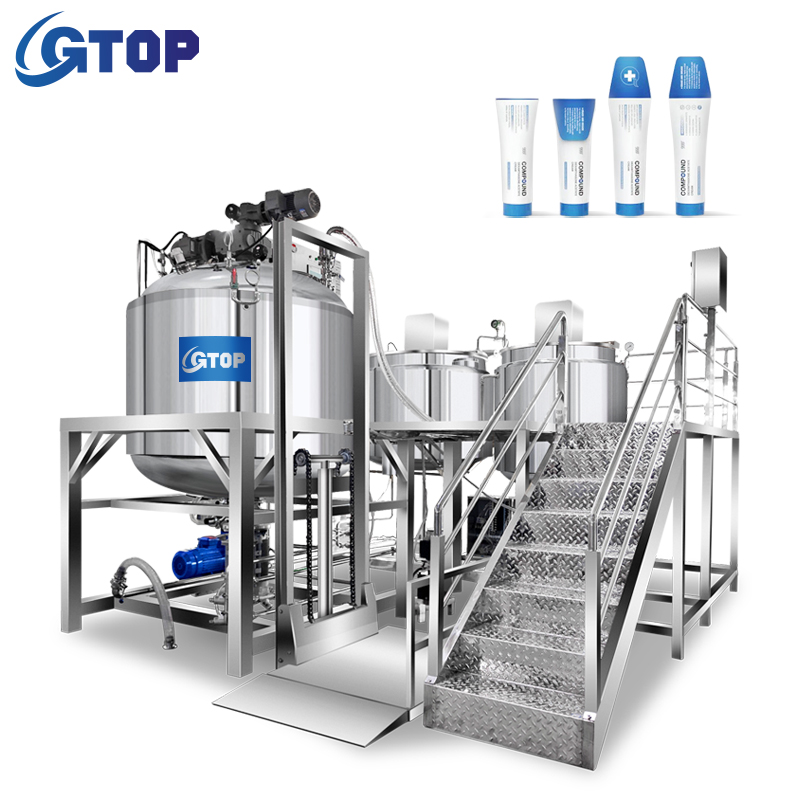

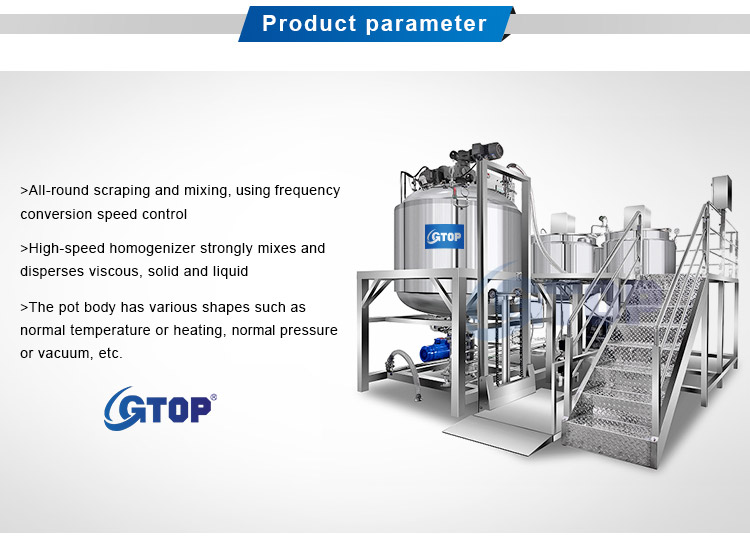

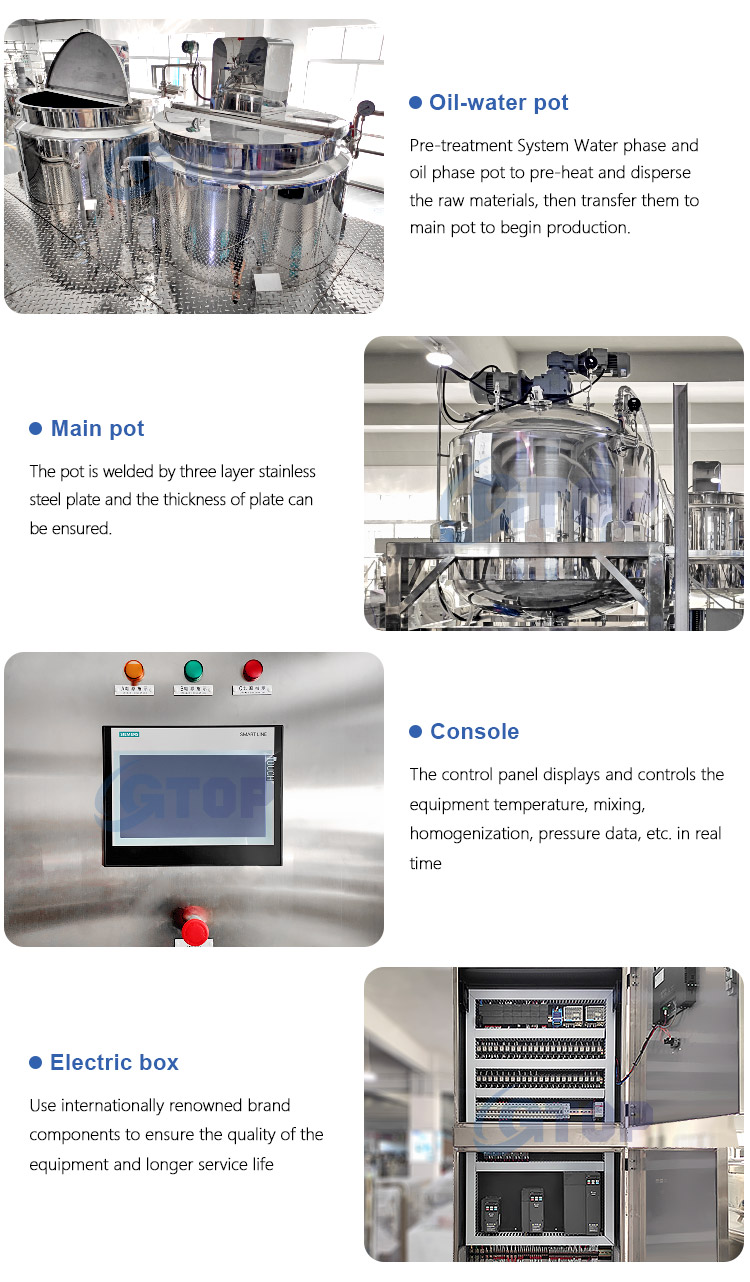

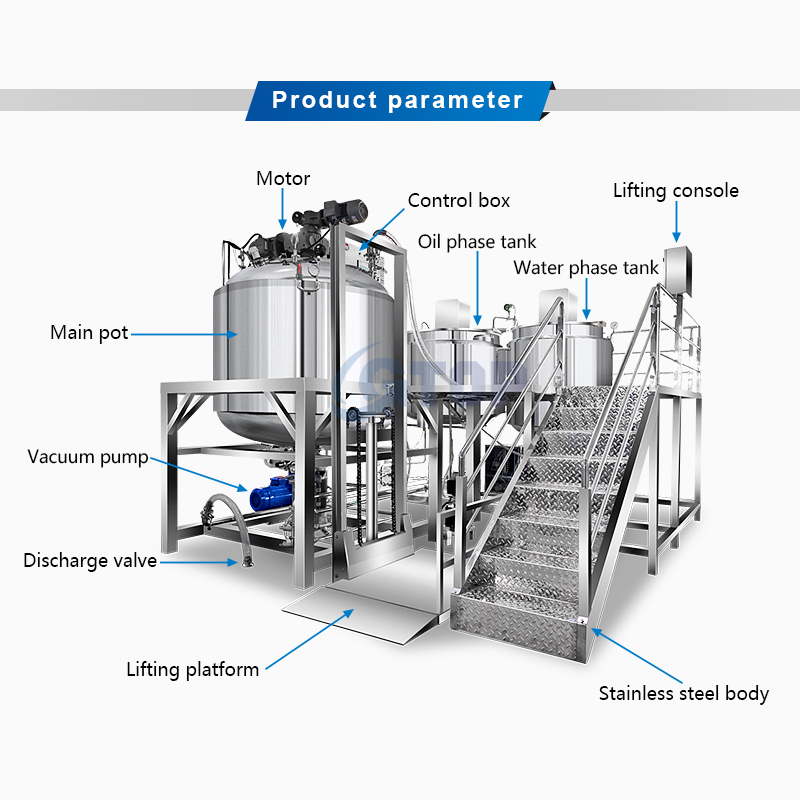

1. The vacuum emulsifying mixer machine is composed of water pot, oil pot, emulsifying pot, operation platform, vacuum system, lifting system etc.
2. Material can be heating or cooling according to technological requirements. The heating methods such as steam or electric heating can be selected according to customer's requirements.
3. The tank body are made of the high quality stainless steel and all contact parts adopt the SUS316L stainless steel. The tank body and pipe are subjected to mirror polishing.

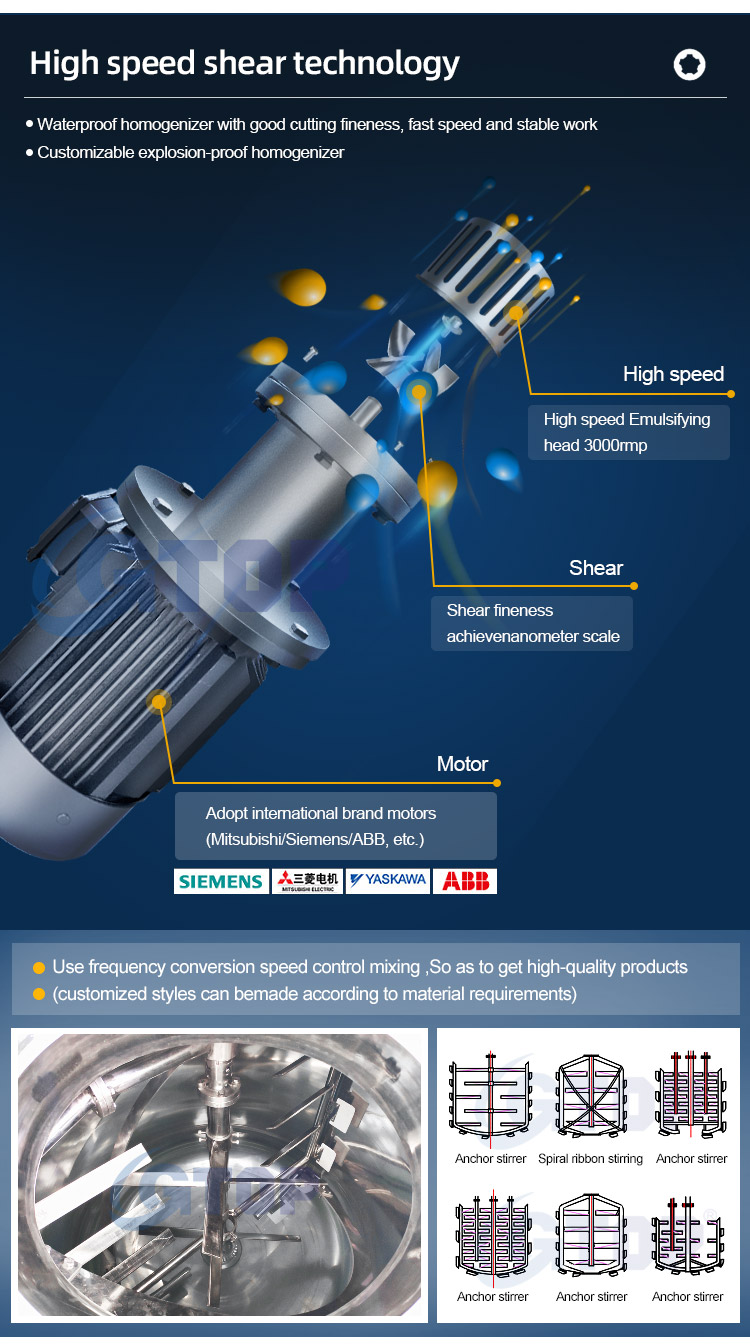

4. Various forms of blending vanes are suitable for production of different types of production of products.
5. The wall scraping mixer adopts frequency converter to adjust the mixing speed, suitable for various products based on clients' requirements.
6. The mixing system includes single-way mixing, double-way mixing and helical ribbon mixing. The lifting systems include single-cylinder lifting and double-cylinder lifting. According to your request, we can customized the suitable machine for you.
7. Vacuum defoaming can make the material reach requirement of aseptic. It adopts the vacuum to suck the material especially for the powder material, which can avoid the dust.
8. It is fully in accordance with the GMP standard production and passed CE certification.
| Model | Capacity (L) | Mixing Power (kw) | Mixing Speed (r/min) | Homogenizing Power (kw) | Homogenizing Speed (r/min) | Heating Method |
|---|---|---|---|---|---|---|
| GT-E-20 | 20 | 0.37 | 0-63 | 0.75 | 0-3000 | Steam heating or electric heating (optional) |
| GT-E-50 | 50 | 0.37 | 0-63 | 2.2 | 0-3000 | |
| GT-E-100 | 100 | 1.5 | 0-63 | 3 | 0-3000 | |
| GT-E-150 | 150 | 1.5 | 0-63 | 3 | 0-3000 | |
| GT-E-200 | 200 | 1.5 | 0-63 | 4 | 0-3000 | |
| GT-E-350 | 350 | 2.2 | 0-63 | 4 | 0-3000 | |
| GT-E-500 | 500 | 2.2 | 0-63 | 5.5 | 0-3000 | |
| GT-E-1000 | 1000 | 5.5 | 0-63 | 9 | 0-3000 | |
| GT-E-2000 | 2000 | 5.5 | 0-63 | 11 | 0-3000 | |
| Note: In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail. | ||||||
The machine is widely applied in cosmetics, pharmaceuticals, food, and daily chemical industries for products such as creams, ointments, lotions, toothpastes, and gels.
The system supports both steam heating and electric heating, which can be configured according to your plant infrastructure and technological requirements.
All material contact parts are manufactured with premium SUS316L stainless steel with mirror polishing to comply strictly with GMP production requirements.
Yes, the mixing speed can be adjusted via a frequency converter, and we offer single-way, double-way, or helical ribbon mixing systems to fit different formulations.
Vacuum deaeration prevents bubble formation to achieve aseptic standards and facilitates dust-free vacuum material/powder feeding directly into the vessel.
