| Model | SYT20 | Fabric Specification | Max φ1100mm W(90-210) mm |
| Capacity | Folding: 8000pcs/min, 400cuts/min | Fabric Roller Dia | 76.2mm |
| Packing: 65-80bag/min | Wipe Unfolding Size | L(110-240) x W(90-210) mm | |
| Lid applicator: 70-80lids/min | Wipe Folding Size | L(110-240) x W(90-110) mm | |
| Line Requirement | 16mm² | Film Material | PET/PE, PET/AUPE, PET/ALCPP, BOPP/PE/AUPE |
| Power | AC380V 50HZ/60HZ 41KW | Film Thickness | 0.07mm - 0.09mm |
| Folding Method | Interfold or single extraction | Film Roller | φ70-75mm |
| Air Pressure | 0.6-0.8MPA; Air consumption 0.3m³/min | Film Specification | φ350mm Width 400mm |
| Machine Weight | 17000kg | Packing Size | L(150-230) x W(100-120) x H(30-80)mm |
| Machine Size | 26100 x 3580 x 2060mm | Label Type | Transparent & non-transparent labels |
| Language | Chinese / English / Spanish (customized) | Label Size | Standard 35-50mm, customizable |
| Fabric Material | Spunlace nonwoven, degradable nonwoven fabric, air lid paper, etc. | Hole Size | Standard 20-40mm, customizable |
| Fabric Roller | Twin rolls, 10 axes running, 10 axes stand-by, automatic splicing | Label Thickness | 0.06mm - 0.08mm |
| Tank Volume | 2 * 1000L | ||
| Note: Capacity varies according to different pieces per bag and packaging film types. | |||

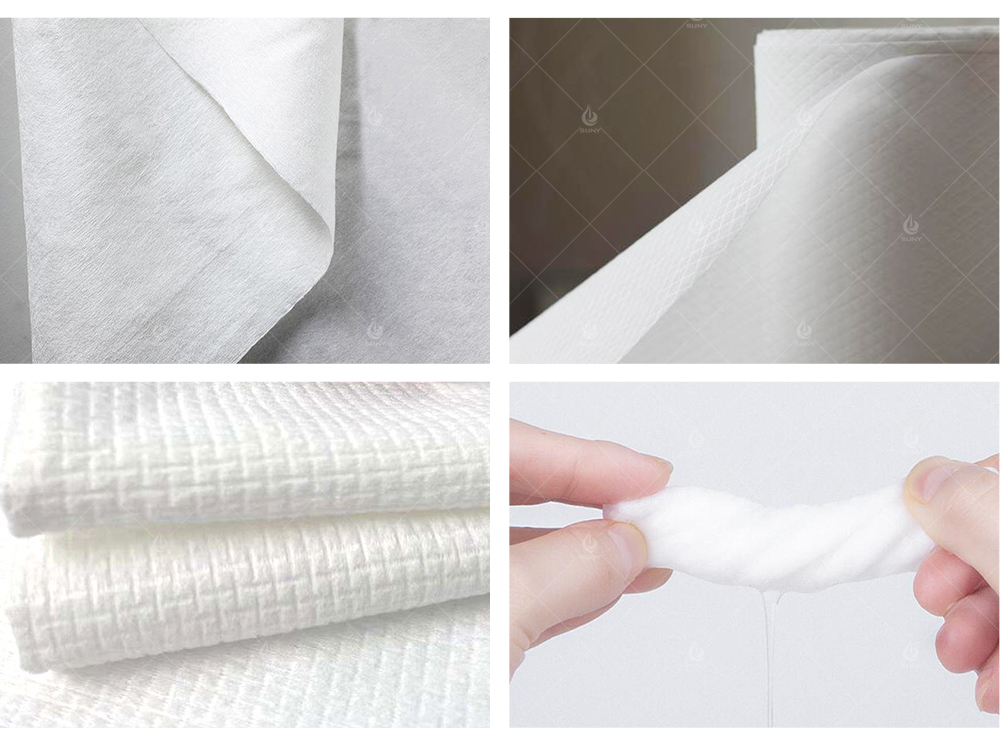

Applicable materials: spunlaced non-woven fabrics, hot-rolled non-woven fabrics, and dust-free fabrics.

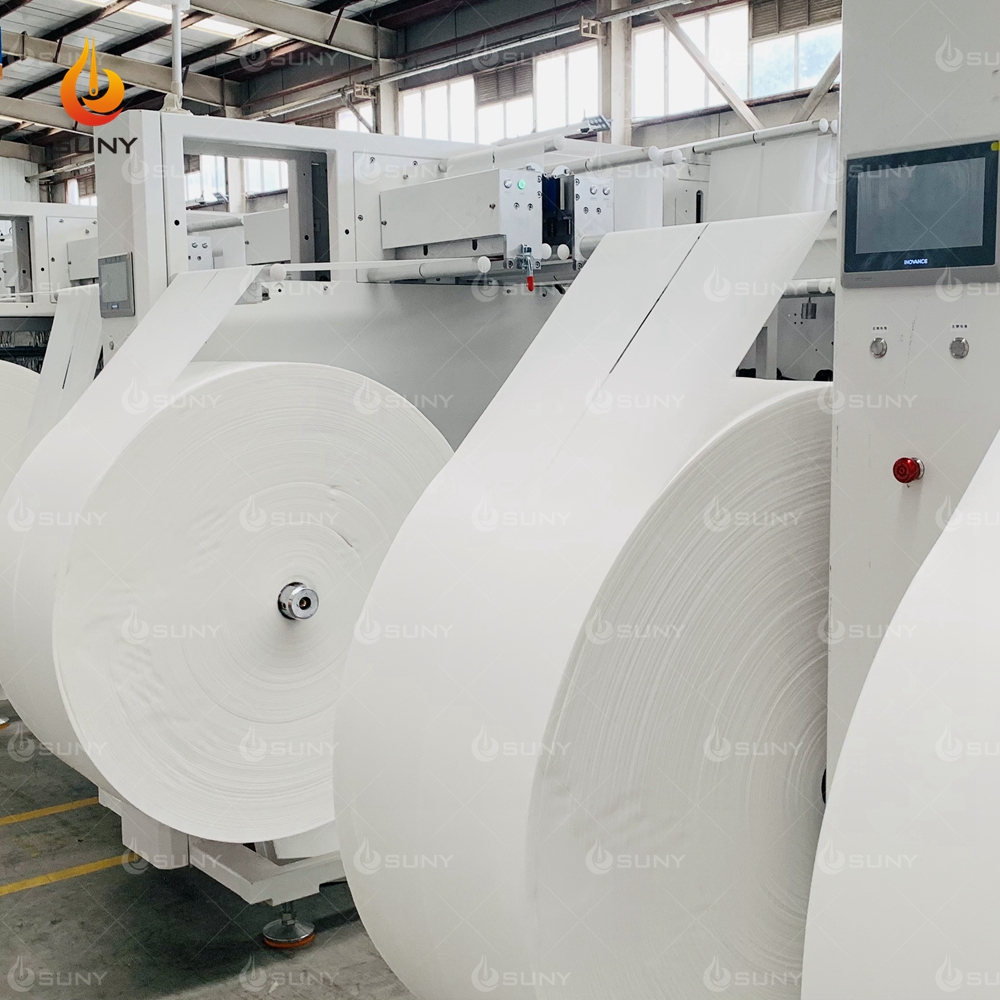

The maximum fabric roll diameter is 1100mm, the fabric roll width is 90-210 mm, and the inner diameter of paper core is 76.2mm.

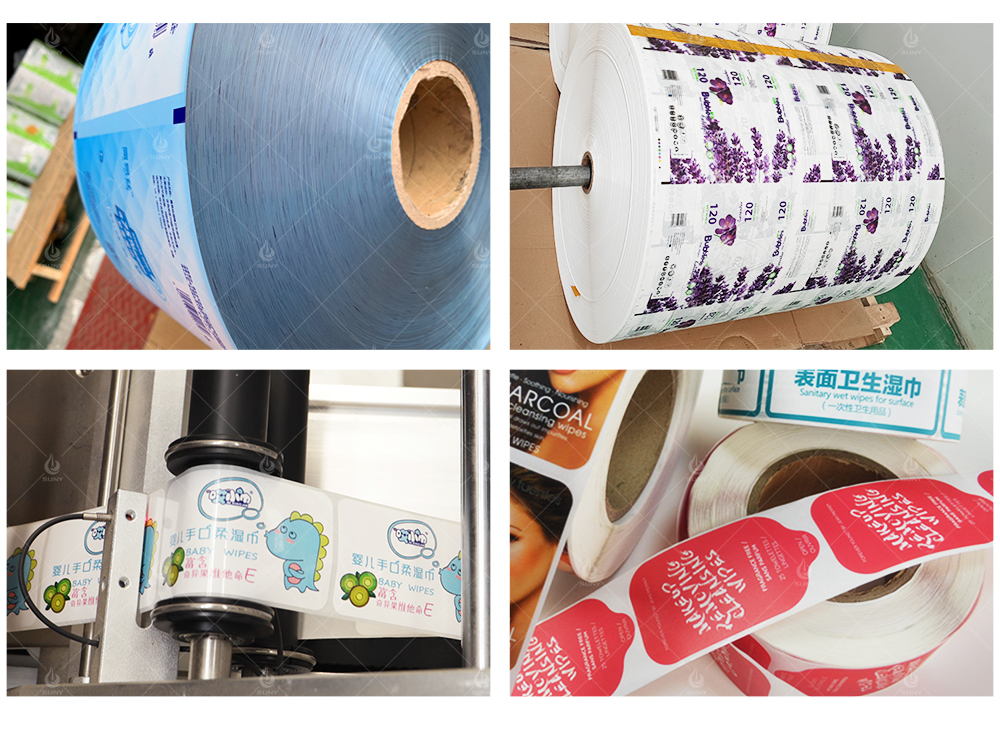

Applicable packaging materials: aluminized film, aluminum foil film, PE/PP, PO/PPE.
Thickness of package material: 0.07mm-0.09mm
Axis number setting: single axis operation
Axis diameter of envelope: 70-75mm in diameter
Coil film specification: diameter 350mm, width 350mm
Packing size: length (150-230) x width (100-120) x height (30-80) mm
This equipment is used to produce wet wipes packed in large bags.

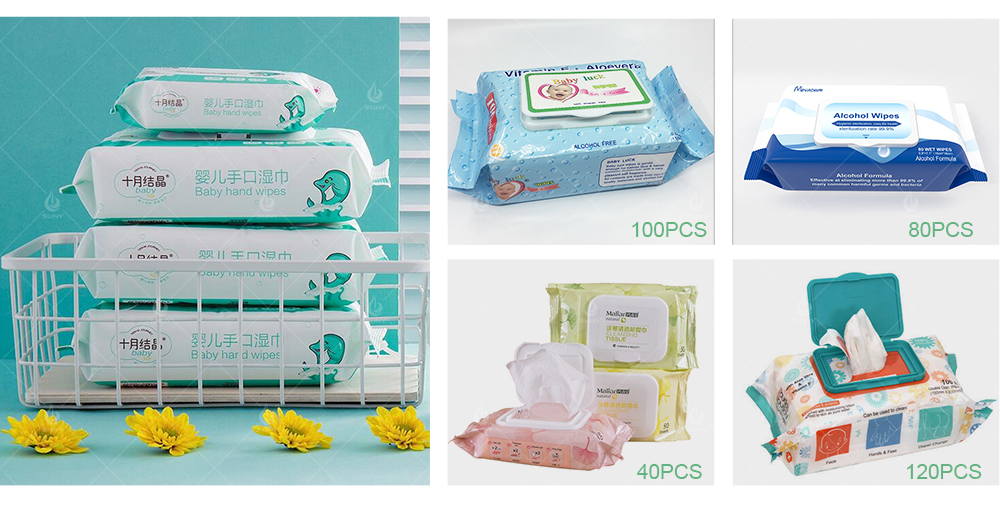

Commonly used in the production of 80pcs/bag-120pcs/bag wet wipes. In specific production, the number of pieces per package can be set on the touch screen.

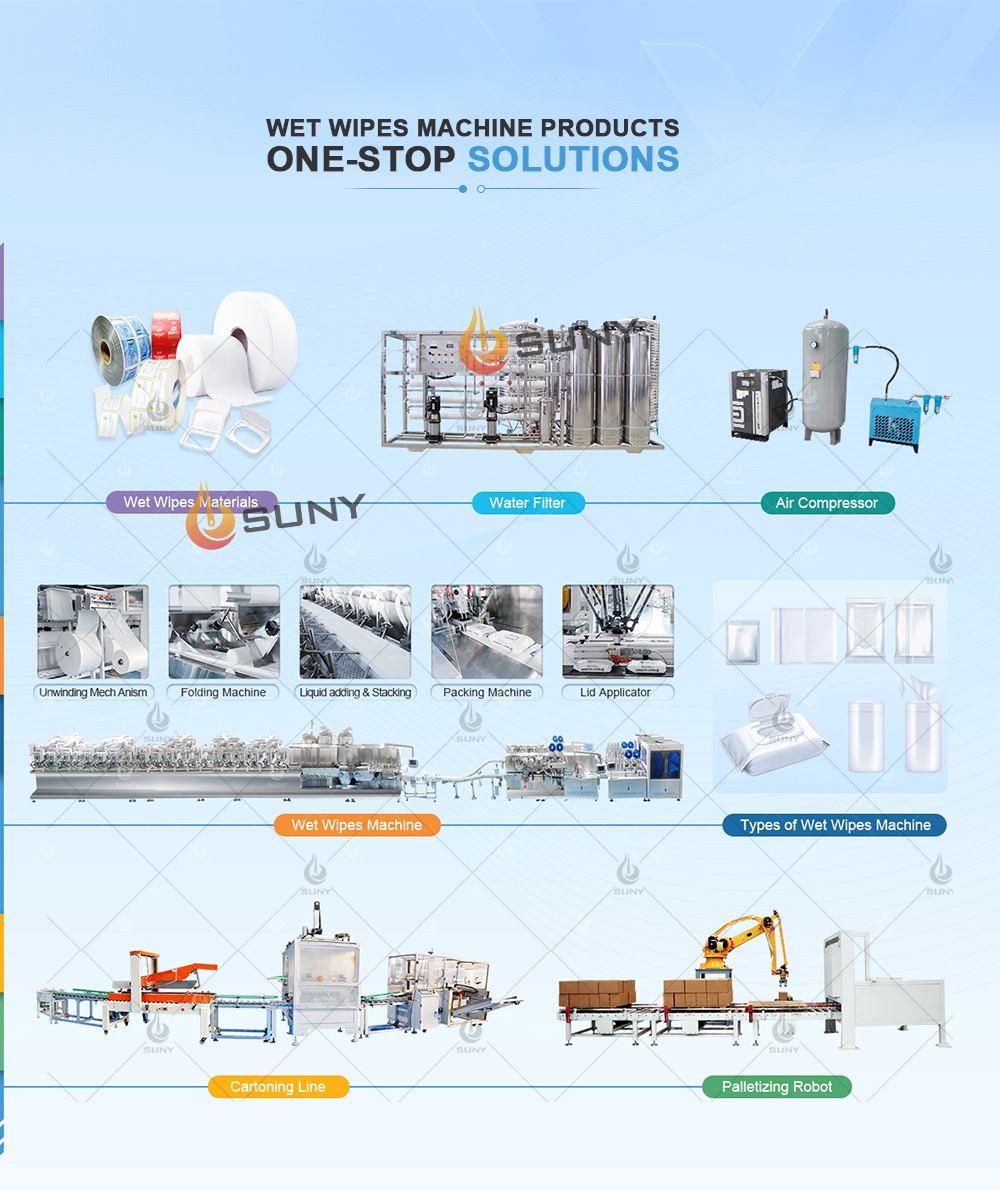

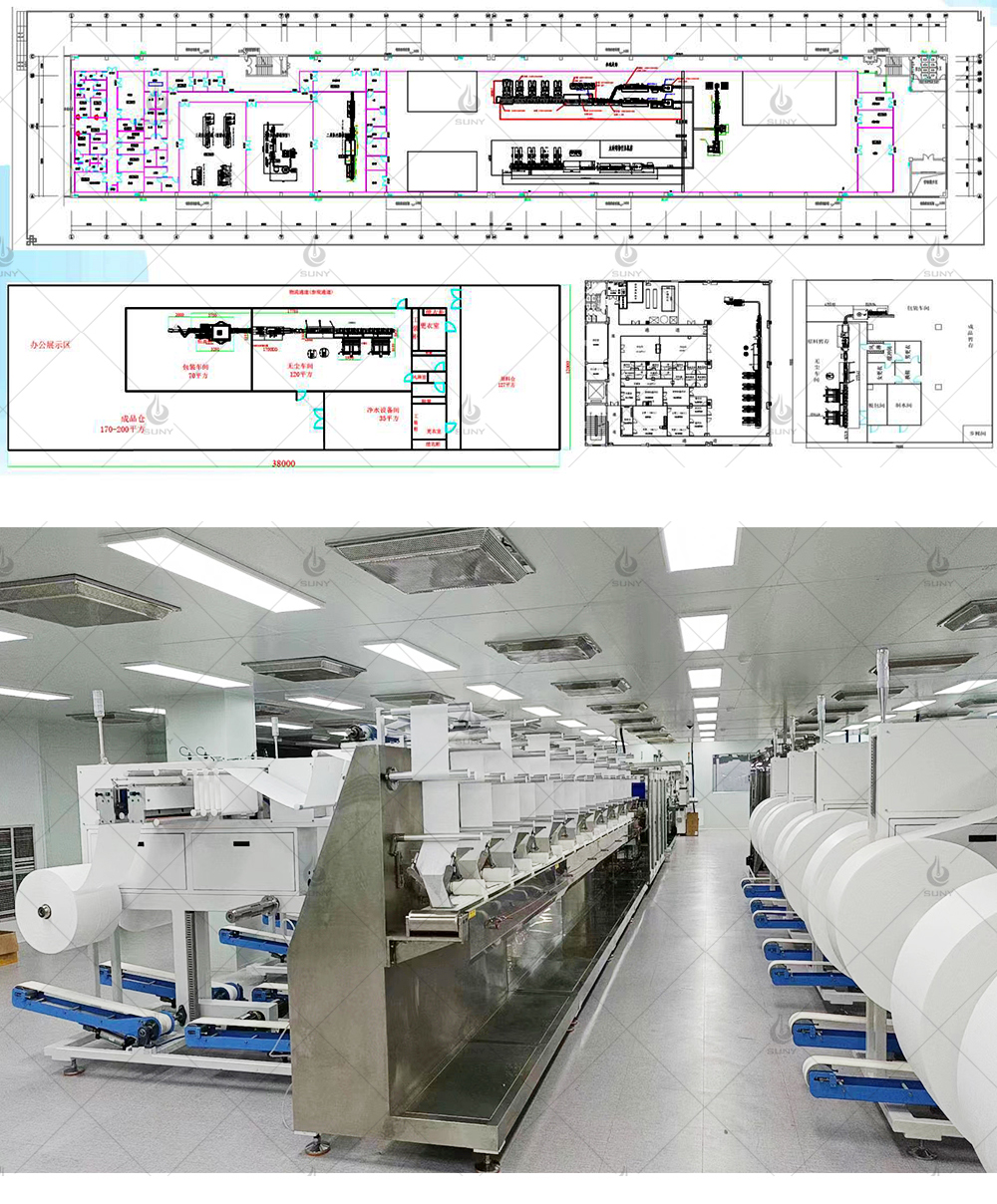

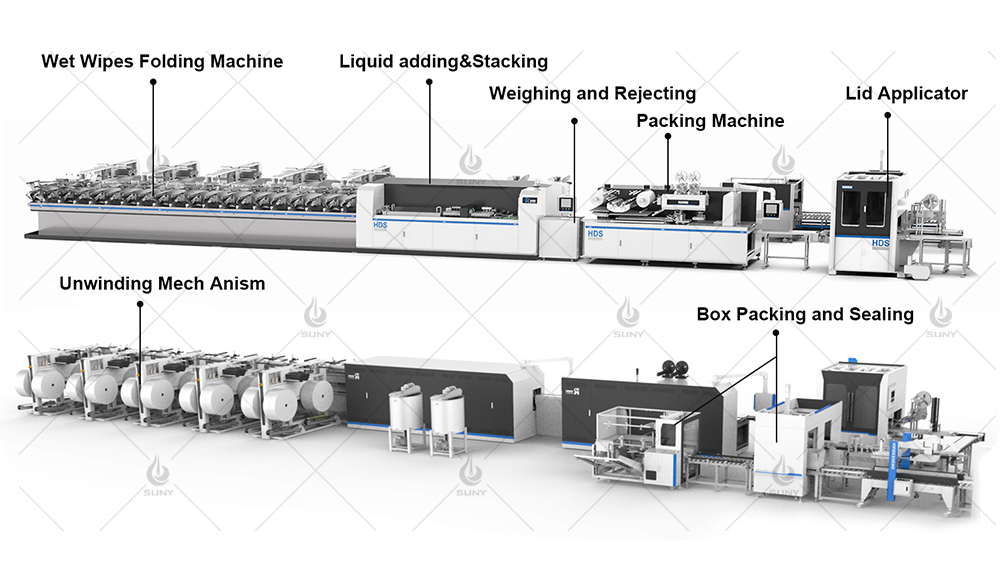

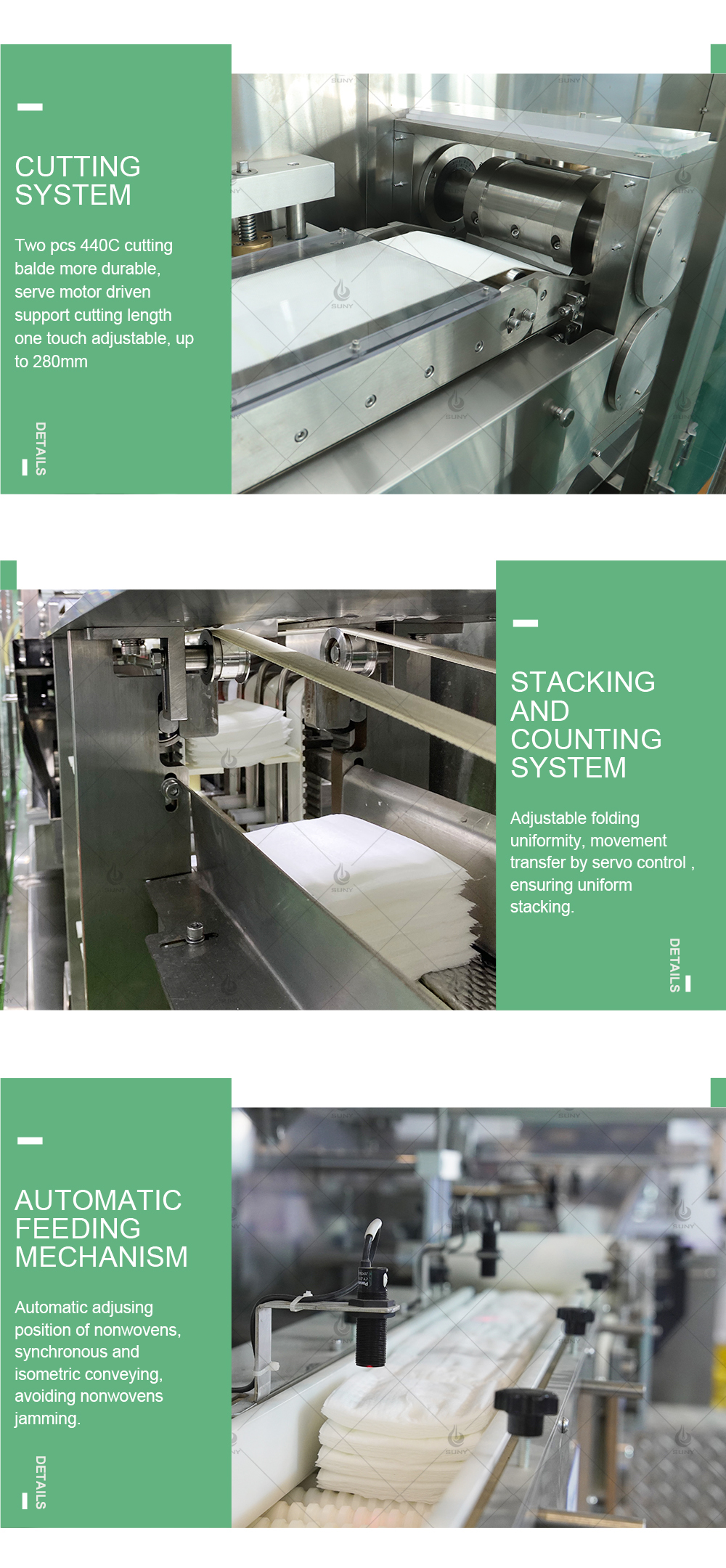

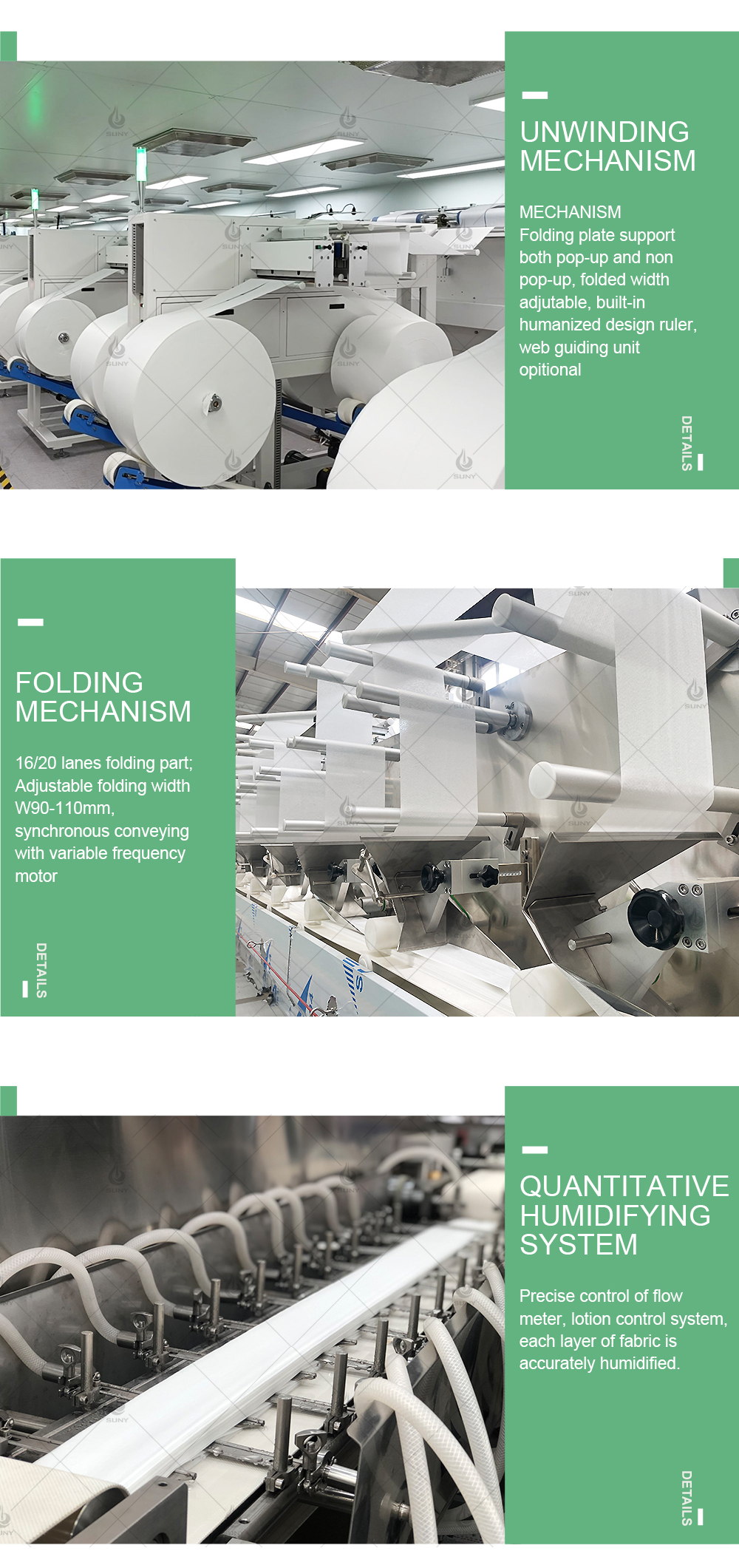

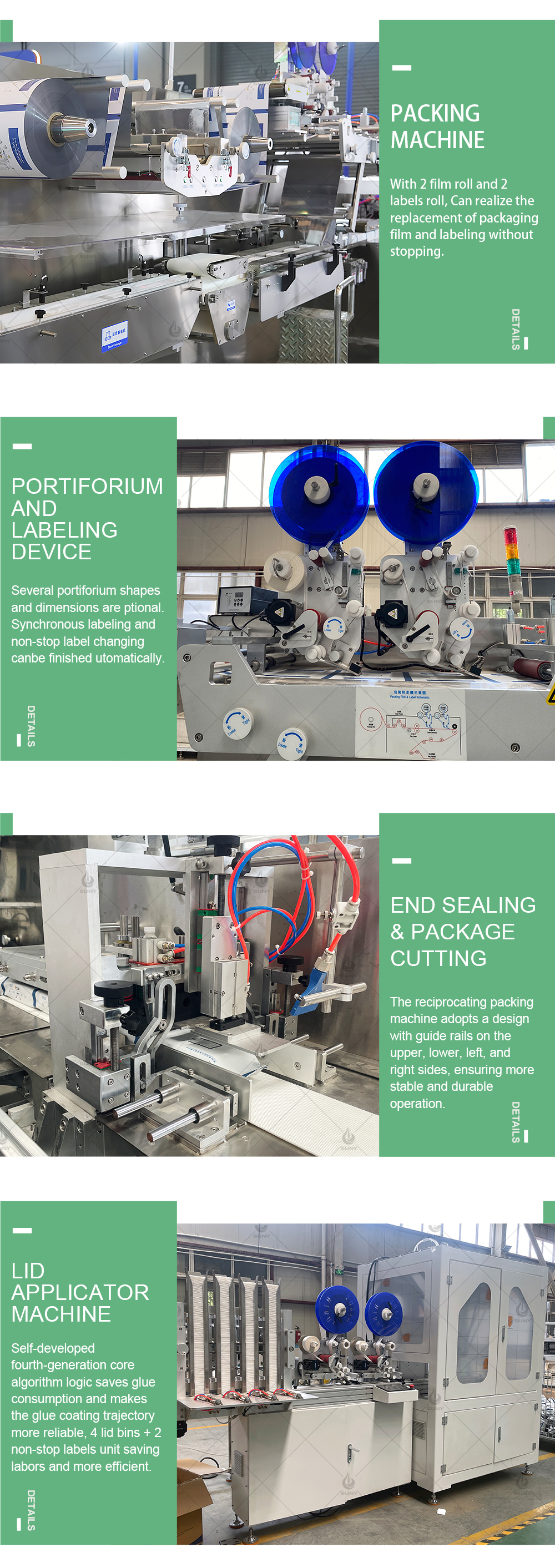

The equipment consists of wet wipes cutting, folding, adding liquid, stacking, bagging, sealing machine and capping machine. The capping machine can be configured independently. The whole production line is fully automatic, and only 1-2 people are needed to assist the supervisor.

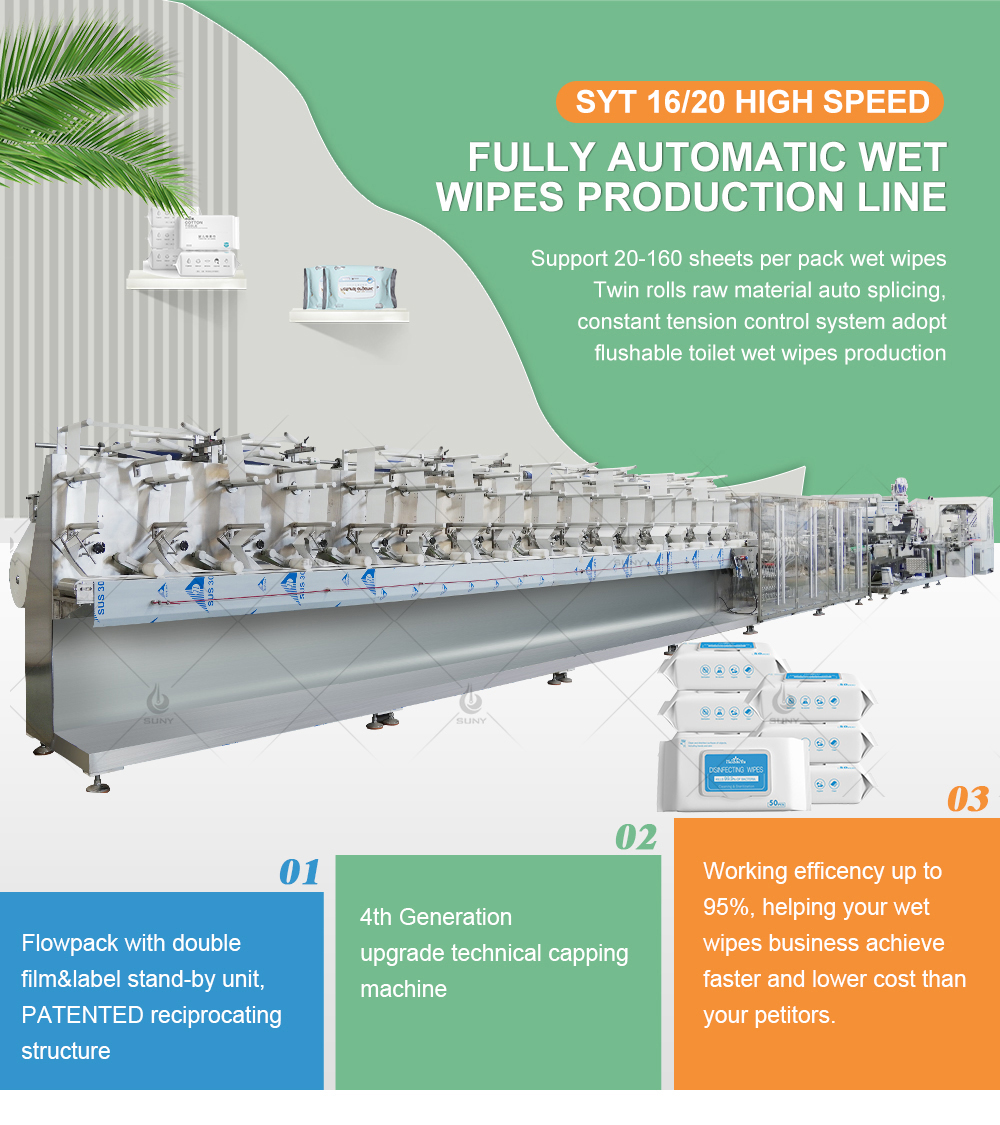

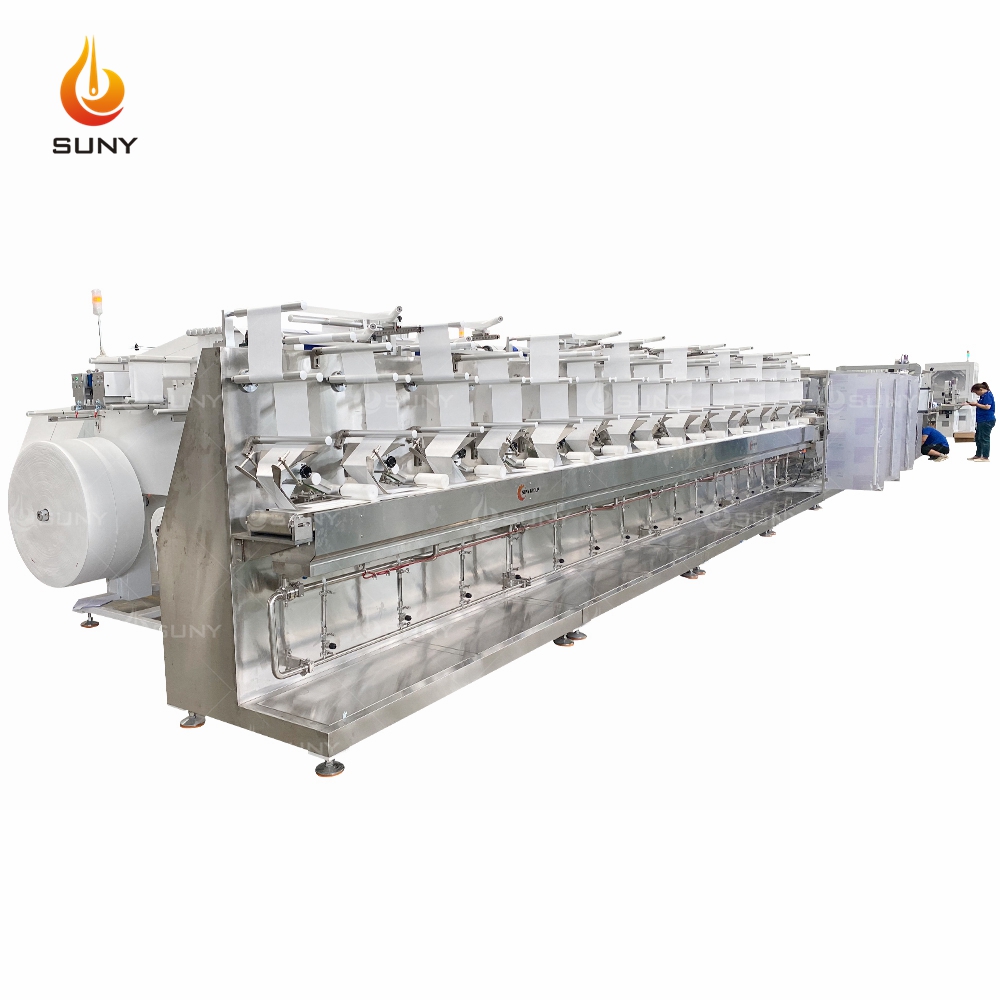

The SYT20 line is engineered to manufacture baby wet wipes, skincare wet wipes, and multi-purpose wipes in medium-to-large capacity formats ranging from 30 to 120 pieces per bag.

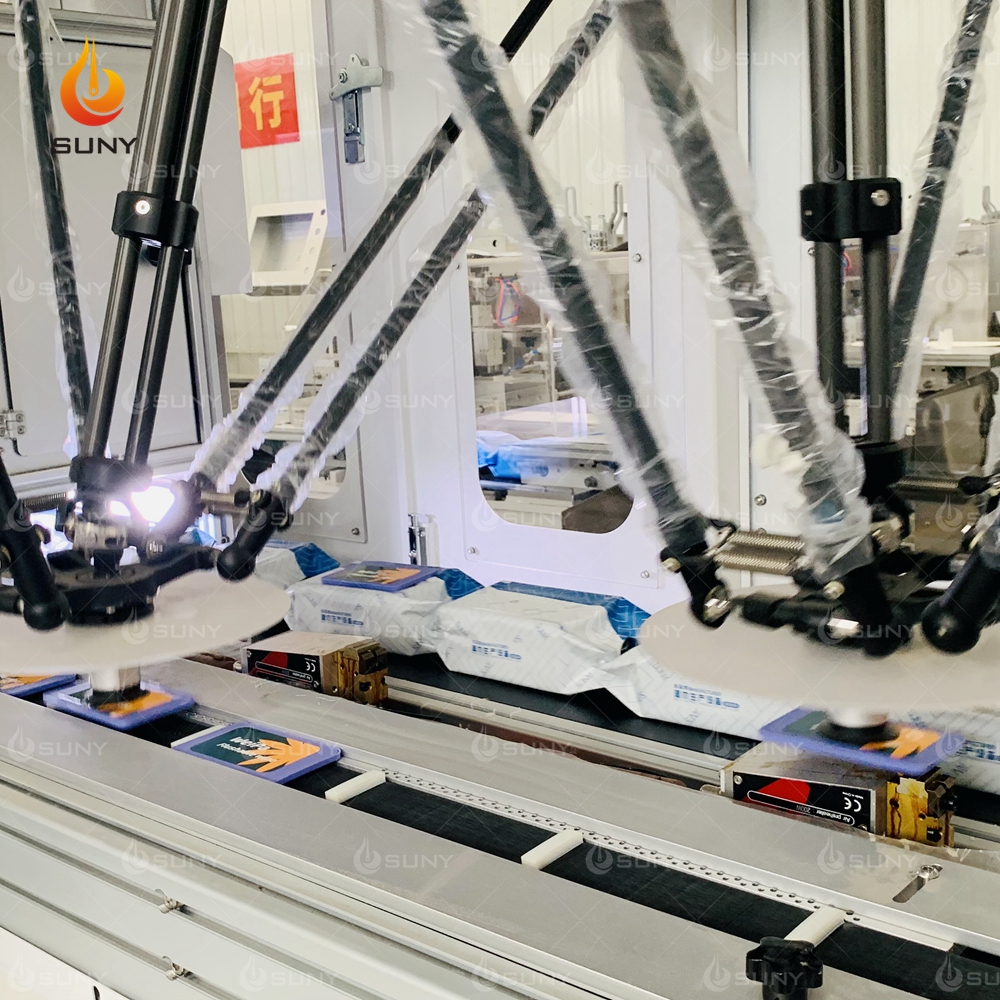

The system folds at up to 8,000 pcs/min (400 cuts/min), packages 65-80 bags/min, and provides automatic lid application at 70-80 lids/min, depending on pack size and film material.
It processes spunlace nonwoven, hot-rolled nonwoven fabrics, degradable nonwoven fabrics, and dust-free air-laid paper with roll diameters up to 1100mm and widths of 90-210mm.
Yes. Wipe counts per pack (such as 80, 100, or 120 pcs) are easily configurable directly on the multilingual touch screen interface, and bag dimensions are adjustable to match requirements.
Because the production line is fully automated from slitting and wetting to sealing and lid application, only 1-2 personnel are required for supervising and loading materials.
